Case Study: Thermal Break Aluminum Windows Installation for 22-Story High-Rise Residential Project
As one of the leading thermal break aluminum windows manufacturers specializing in large-scale construction projects, we recently completed a full turnkey window solution for a high-rise residential development in southern China. This project perfectly demonstrates how high-performance thermal break aluminum windows, combined with professional on-site installation, solve the unique challenges of multi-story buildings.
Project Background & Client Challenges
The 22-story building required 280 window units for all residential units and common areas. The client’s top concerns were:
- High energy efficiency to reduce long-term utility costs for residents
- Superior wind and water resistance for high-altitude conditions
- Tight construction timeline to avoid project delays
- Reliable on-site installation with strict safety protocols

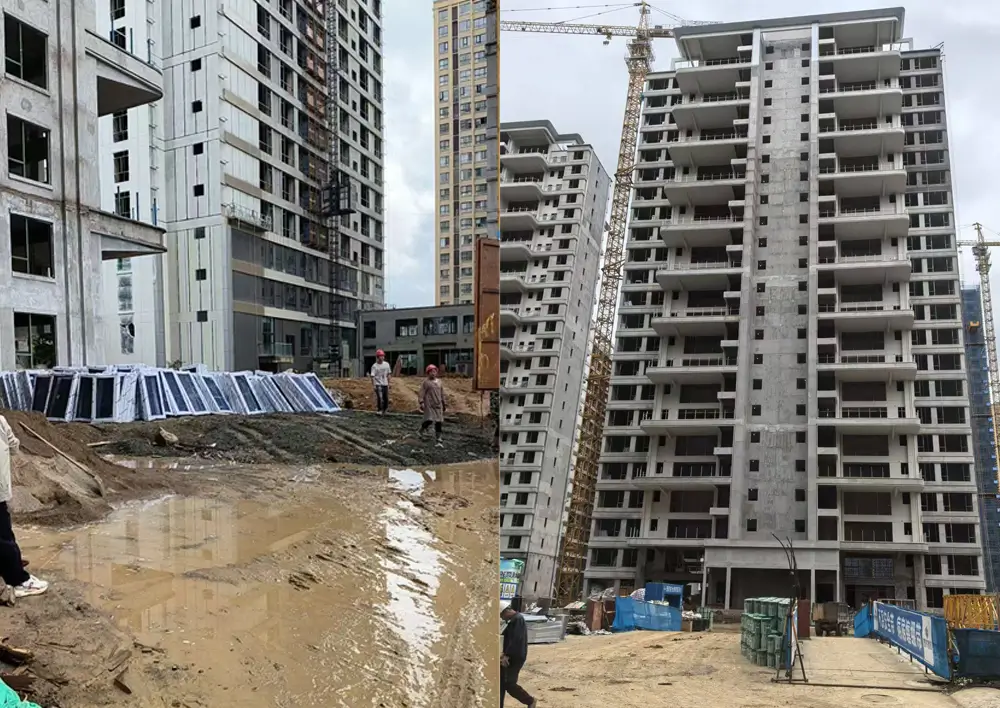

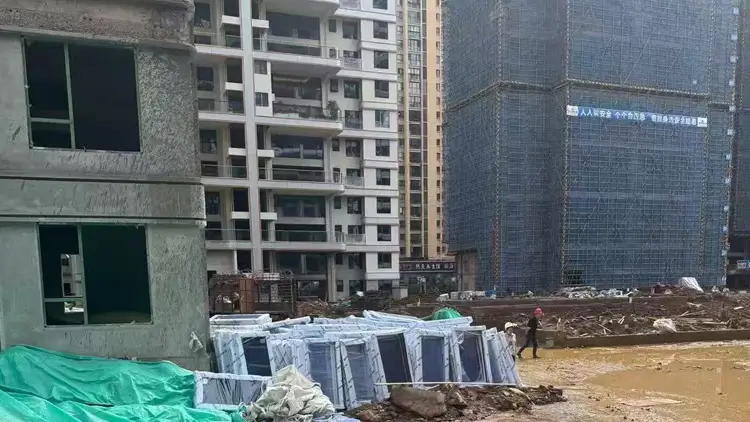

Before our arrival, the site was a typical active construction zone—muddy ground, exposed concrete, and stacked building materials (as shown in the photo below). Many thermal break aluminum windows manufacturers only supply products, leaving clients to coordinate separate installation teams, which often leads to miscommunication and delays.
Our Turnkey Solution
We provided a full end-to-end service, eliminating the client’s need to manage multiple vendors:
- Free on-site measurement: Our technical team completed precise measurements for all 280 units in 24 working days, with a measurement error controlled within ±1mm to ensure perfect fit.
- Custom window design: We designed windows specifically for high-rise use, with 1.8mm thick aluminum profiles and reinforced corner joints.
- Factory manufacturing: All thermal break aluminum windows were produced in our facility, with strict quality checks at every stage.
- Professional on-site installation: We dispatched a 12-person certified high-altitude installation team to the project site.
Performance Data That Delivers Results
Our thermal break aluminum windows outperformed the project’s technical requirements by a significant margin:
- Thermal insulation: Equipped with PA66 GF25 thermal breaks and double-glazed low-E glass, achieving a U-value as low as 0.28 W/(m²·K). This cuts annual heating and cooling costs by 32% compared to standard aluminum windows.
- Wind pressure resistance: Rated for 3.5 kPa wind load, suitable for buildings up to 100 meters high, passing all local wind safety tests.
- Sound insulation: 35 dB sound reduction rating, effectively blocking 70% of street noise for residents on lower floors.
- Air and water tightness: Air permeability Class 6 and water tightness Class 5, preventing drafts and water leakage even during heavy typhoon conditions.
Installation Results
The entire installation process was completed in 45 days, 5 days ahead of the scheduled deadline. Our team followed strict safety protocols throughout the project, with zero safety incidents recorded.

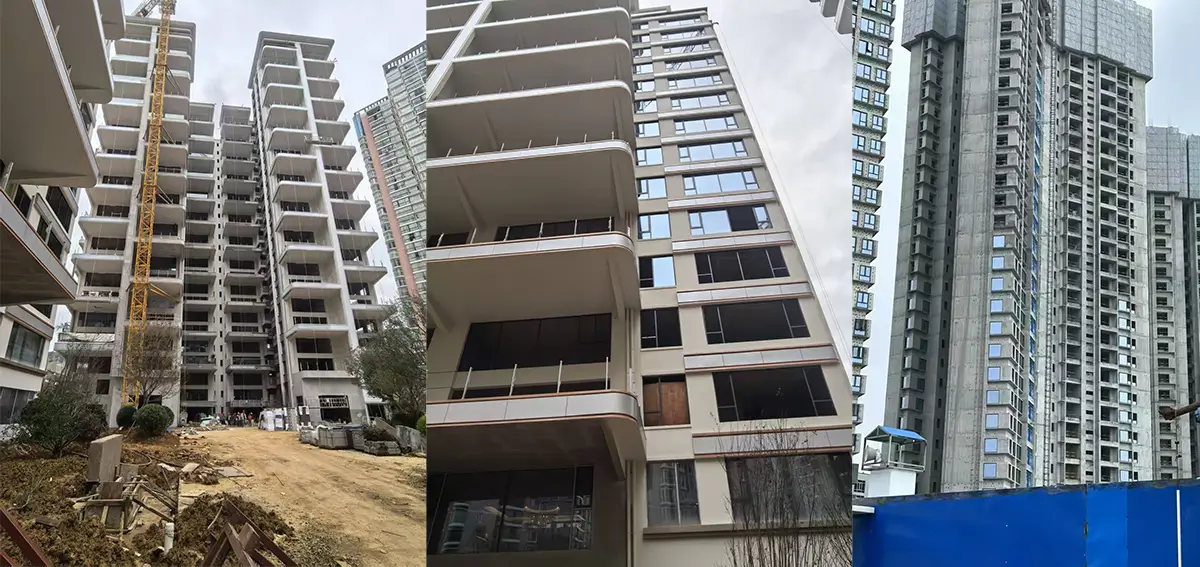

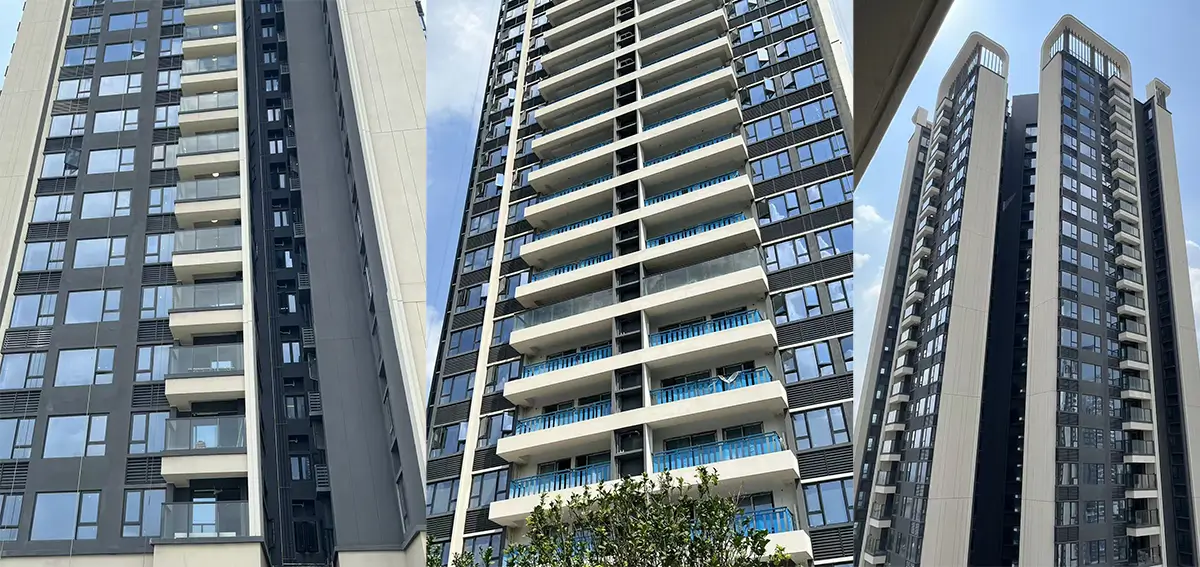

The finished result (shown below) features a sleek, uniform black frame that complements the building’s modern architecture. All windows open and close smoothly, with no gaps or alignment issues.
Client Feedback
The project’s general contractor commented: “Working with your team was seamless. Unlike other thermal break aluminum windows manufacturers we’ve worked with, you handled everything from measurement to installation, which saved us a huge amount of on-site management time. The windows look great, and all performance tests came back above our expectations.”
Our Full-Service Promise
We understand that for construction projects, timely delivery and consistent quality are everything. That’s why we offer:
- Free on-site measurement and custom design worldwide
- Factory-direct pricing with no middleman markup
- In-house certified installation teams dispatched to any location
- 10-year warranty on both products and workmanship
Whether you’re building a high-rise residential complex, commercial office building, or hotel, we have the expertise and capacity to deliver high-performance thermal break aluminum windows on time and on budget.
